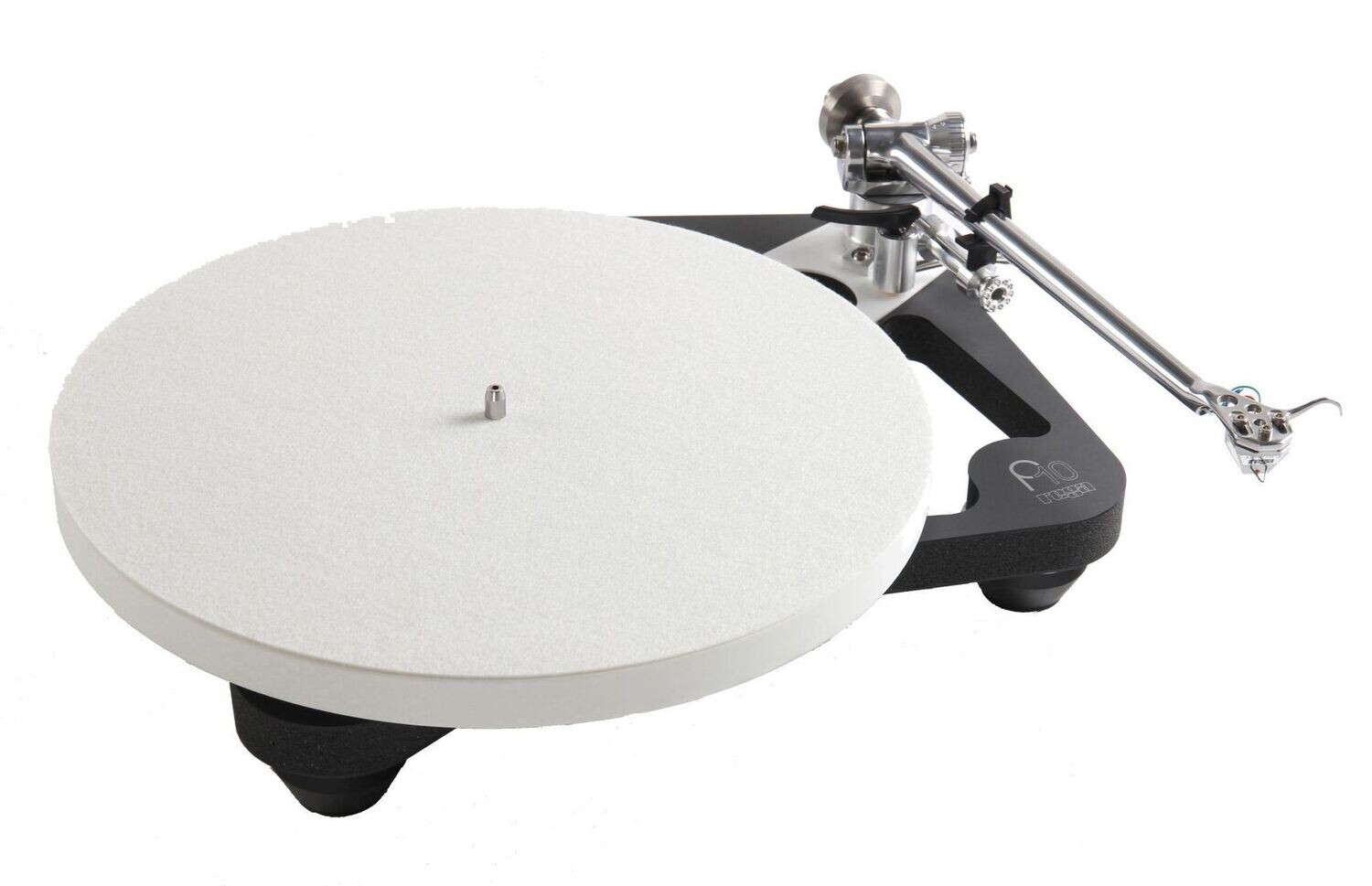

Rega Planar 10

For the Planar 10, Rega have used the most advanced materials and engineering solutions built around a supremely lightweight plinth to ensure the greatest level of performance.

Like its sibling the Planar 8, the Planar 10 was inspired by the ultimate Rega turntable, the Naiad. Rega decided early on that instead of an evolution of the previous RP10, the new Planar 10 was to be developed and engineered to encapsulate the essence of the Naiad at a more affordable price. The Planar 10 narrows the gap between itself and the Naiad even further by using more exotic materials, carefully selected to reduce mass and improve rigidity throughout the design. New innovations in hub bearing, sub platter, motor and drive belt design have led to even greater accuracy in turntable speed which directly improve sound performance.

The Planar 10 features the new RB3000 tonearm fitted with an improved, low mass, precision bias housing. We have pioneered a completely new low mass, central hub bearing assembly with improved mechanical integrity. For the first time on a Rega production turntable, a ceramic top brace delivers ultimate rigidity and accuracy whilst creating the perfect platform between tonearm and central bearing. Finally, this entirely new player is controlled by Regas most advanced electronic power supply housed in a brand-new, full metal custom case designed to match the latest range of Rega electronics.

The Planar 10 will be made available with a brand new MC cartridge the Apheta 3 as a factory fitted option. This new cartridge was developed alongside the Planar 10 and is using Regas most advanced "Fine Line" diamond profile. As the recommended match for the Planar 10 turntable the Apheta 3 factory fitted package will be available at a discounted rate, please contact us for pricing.

Rega believe that the Planar 10 and Apheta 3 combination sets new accuracy standards in retrieving information from the record groove making this a truly ‘state of the art’ player.

Ultra-lightweight plinth

The Planar 10 is the third Rega turntable constructed using our latest technology the ultra-lightweight Tancast 8 polyurethane foam core (a material developed for the aerospace industry). This material is sandwiched between two layers of HPL (high pressure laminate). HPL is exceptionally thin and extremely rigid. This new construction makes the new Planar 10 skeletal plinth 30% lighter than the original RP10 while offering increased rigidity over the previous model.

RB3000 tonearm

The entire tonearm structure is designed to have the minimum of mechanical joints while using the stiffest materials in all critical areas. The tolerance of the RB3000 tonearm is so tight that no adhesive is used at any point throughout the construction. Our latest low mass, precision engineered, vertical bearing assembly has been manufactured to further complement the inherent design philosophy of the P10 turntable.The RB3000 tonearm uses our advanced, preloaded zero tolerance bearing assembly adjusted to less than 1000th of a mm. This gives friction free movement and zero levels of unwanted play. Simply put, friction free bearings with no play enable ridges in the record groove of less than a micron to be read.The RB3000 also uses our latest award-winning, aluminium, Rega arm tube (each one of which is meticulously hand polished, keeping mass to an absolute minimum) hich was redesigned to redistribute mass and further reduce stresses and resonances. This advanced design tube increases the stiffness and rigidity of the overall assembly whilst reducing stress on the bearings even further.

Hub Bearing assembly

The Planar 10 uses a new low mass central bearing assembly. A single piece machined aluminum sub-platter and hardened tool steel spindle run inside a custom brass housing designed with imporved mechanical integrity. The complete assembly is cleverly mounted within the chassis to eradicate unwanted potential energy being transferred or stored in the plinth.

Ceramic Platter

The P10 uses a custom ceramic, flywheel effect platter. The platter is produced from ceramic oxide powder which is compressed, fired and diamond cut to ensure perfect accuracy and flatness across the surface. The latest platter features a modified construction with improved coupling to the sub platter.

EBLT Drive Belts

For three years Rega has been researching and developing with chemists the use of a bespoke new rubber compound for drive belts. Using a specialised curing system, the new drive belt offers superior consistency of modulus (a constant representing the degree to which a substance has a particular property, especially elasticity). These new belts are manufactured on Rega designed, state of the art, super-accurate tools (inspired by working with the manufacturer of high-tech Formula 1 engine parts) which produce 'perfectly round' and 'dimensionally accurate' belts, critical for perfect speed stability.

P10 PSU custom matched advanced power supply.

The P10 PSU offers the ultimate in motor control stability, convenient electronic speed change, advanced anti-vibration control and user adjustable electronic fine speed adjustment to ensure total accuracy and control over the life of the motor. Housed in Rega's latest custom designed case, the P10 PSU is dedicated to running our 24v, low noise motor as quietly and as accurately as possible. The speed and control of the motor is achieved by using a new DSP (Digital Signal Processing) generator built upon a high stability crystal. This device will divide the accurate square wave from the crystal to the exact frequency required to turn the platter at the selected speed. The DSP core will also generate a near perfect sinusoidal waveform to power the motor. Factory set vibration removal and fine speed adjustments are then made to the power supply to tune each motor for optimal performance.

Planar 10 with Apheta 3 cartridge £5400

Planar 10 with Aphelion 2 cartridge £7395
